Acoustic wood panels
Acoustic wood panels
BASIC MATERIAL : Moisture- proofing and mildew-proofing MDF board, thickness of 15mm or 18mm.
Other
thickness and type of board also available to customer’s requirements.
FINISHING :
melamine finishing
according to color card; natural wood veneer also available with customized
painting.
ACOUSTIC FABRIC :
fire-proofing and sound absorbing black thin acoustic fabric attached to the black.
WIDTH
: 128mm or
customized size.
LENGTH : 2440mm at the max, or customized size.
TOLERANCE : 0.1mm on
width, 2mm on
length.
CONNECTION : could make into 90 degree angle of the rabbet and notch on the
legnth size..

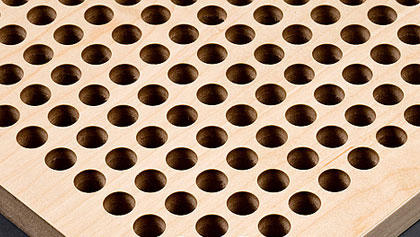

Proforated Wood Panels
Linear Holes,Hole Pitch 16mm
Thickness:10mm and 15mm
NRC:0.80

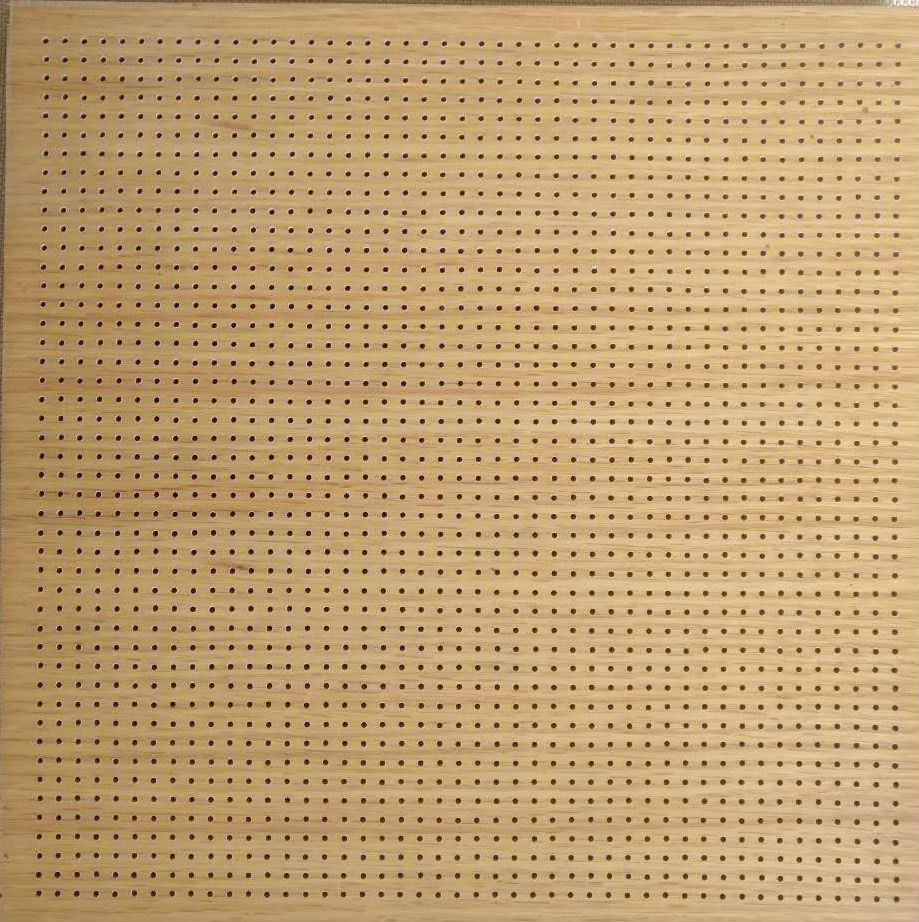

Micro Proforated System
Linear holes,Hole pitch 16mm,
Front aperture 10mm
Thickness
15mm,
NRC-0.70
ACOUSTIC FABRIC :
fire-proofing and sound absorbing black thin acoustic fabric attached to the black.
WIDTH
: 128mm or
customized size.
LENGTH : 2440mm at the max, or customized size.
TOLERANCE : 0.1mm on
width, 2mm on
length.
CONNECTION : could make into 90 degree angle of the rabbet and notch on the
legnth size..

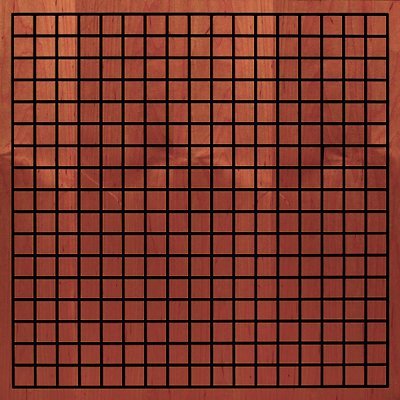

Grid System
NRC:0.70
ACOUSTIC FABRIC : fire-proofing and sound absorbing black thin acoustic fabric
attached to
the black.
WIDTH : 128mm or customized size.
LENGTH : 2440mm at the max, or customized
size.
TOLERANCE : 0.1mm on width, 2mm on length.
CONNECTION : could make into 90
degree angle of the
rabbet and notch on the legnth size...
Design Wall Panels
ACOUSTIC FABRIC : fire-proofing and sound absorbing black thin acoustic fabric attached
to the
black.
WIDTH : 128mm or customized size.
LENGTH : 2440mm at the max, or customized
size.
TOLERANCE : 0.1mm on width, 2mm on length.
CONNECTION : could make into 90
degree angle of the
rabbet and notch on the legnth size...
